Introduction

Although over 60 dams were built in the Kauaeranga Valley, only two, Dancing Camp and Christmas Creek, remain substantially intact.

Kauri logging

The Kauaeranga Valley was once adorned with magnificent kauri trees. Favoured for its thick, straight trunk and durable knot-free timber, kauri was highly sought after by early settlers.

The abundance of kauri in the valley drew pioneering bushmen to the area. From the 1870s bush camps were set up throughout the valley and the area was logged extensively over the following 60 years.

When all but the most inaccessible kauri within the valley had been logged, the tramline was pulled up and the dams, bush camps and other relics gradually fell into ruin as the forest slowly began to recover. In 1970 the remaining sections of native forests were protected as part of the Coromandel Forest Park.

Kauri dams

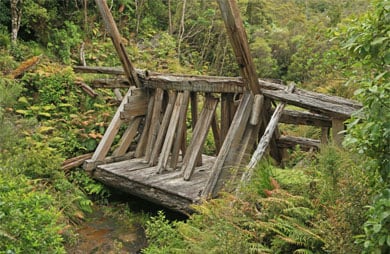

Dancing Camp dam.
Dancing Camp dam
Image: Alan Cressler |

Of the many structures built by kauri bushmen, the driving dams have proven the most durable, and are arguably the most distinctive and evocative relics of the industry.

Over 60 dams were built in the Kauaeranga Valley, however, today only two (Christmas Creek and Dancing Camp) remain substantially intact. If you want to see how the dams worked there is a one third scale working replica just ten minutes walk from the visitor centre.

The Dancing Camp dam is 5 minutes from the Pinnacles Hut, on the Kauaeranga Roadend - Pinnacles Hut section of the Kauaeranga Kauri Trail.

Access to Christmas Creek is dangerous and not recommended.

Restoration work

Built in the 1920s, both the Christmas Creek and Dancing Camp dams have been partially restored to ensure their survival. Further work is planned to rebuild the right side of the Christmas Creek dam. Ongoing maintenance and treatment plans are in place to preserve the timber of both dams.

Kauaeranga Kauri Trail follows original pack tracks once used by bushmen and spans a spectacular landscape of pinnacles, bluffs and gorges.

Christmas Creek kauri driving dam

Fabric

A rafter flume dam with loose plank gate. Total width 35m and stood c10m above the dam floor. The planking on a rafter dam is fixed to the rafters and runs horizontally. The planking on the true left side is virtually complete. Major remedial work was undertaken from 1996 to 1998 involving substantial replacement of rafters and flume planking on the true right side & treatments (CD50/Metallex mix). Recorded archaeological site T12/888.

History

The builder, the exact date of construction and even the source of the name Christmas Creek (a tributary of the Kauaeranga River) are not known despite considerable research. Believed to have been built in the early 1920s. No known historical photos of the dam exist.

Dancing Camp kauri driving dam

Fabric

Although Dancing Camp is one of the more substantial remaining dams prior to partial restoration work in 1994 its condition was fair (Pearson 1994:7). Virtually all the faceplanking had disappeared and many of the main stringers and rafters had collapsed or had extensive sections of rot.

A Conservation Plan was prepared (Pearson 1994) and the work (partial restoration) and timber treatment was undertaken in 1995 (Ritchie 1995). Since then there has been one retreatment (CD50) in 1998.

History

Dancing Camp dam was built by Jim Angel in 1924, towards the end of the period when driving dams were extensively used. Between 1918-1928 some 27 million linear feet of kauri was removed from this area in the upper reaches of the Kauaeranga Valley. It was one of 9 dams which drove logs down to booms in the lower valley.

Over 30,000 super feet of kauri, enough for three 3 bedroom houses, were used in its construction (Haywood 1978:30).

Fabric significance

Of the many structures built by pioneer kauri bushmen including camps, shanties, log chutes, trestles and skid roads, the driving dams have proven the most durable, and are arguably the most distinctive and evocative of the industry as a whole. They were an essential part of the kauri industry for recovering logs in difficult back country.

Although over 60 dams were built in the Kauaeranga valley, only two (Dancing Camp and Christmas Creek) remain substantially intact. Dancing Camp dam was the second largest in the Kauaeranga after the Main Dam.

The Dancing Camp dam is classified as a stringer dam because it was planked vertically, the boards being nailed directly into the stringers (major horizontal beams). Dams such as Dancing Camp were also known as flume dams because the floor and sides of the gateway were planked to prevent the bank and backlegs of the dam being washed away and to minimise log jams as the water surged through when the gate was tripped.

Kauri dams developed into highly ingenious reusable structures unique to this country.

Historic Significance

When Europeans first arrived in New Zealand kauri trees grew in abundance from the Kaimai Ranges to the far north covering some 1.2 million hectares.

lthough Maori used kauri and kauri gum no significant impact on the resource occurred until the late 1700s when British vessels were sent to NZ to obtain spars for sailing ships.

By the 1830s, it was being sawn into boards for export and the local market. In 1903 340,000 cu metres was milled, approximately 40% of it being exported. Much of the timber used in the reconstruction of San Francisco after the 1905 earthquake and fire was kauri imported from New Zealand.

Kauri logging was New Zealand's first major land-based export industry (excluding whaling & sealing); consequently associated technologies such as the driving dams are an important historic element of one of our pioneer industries.

References

Haywood, Bruce.W. 1972 Kauaeranga Kauri: A Pictorial History of Kauri Timber Industry in the Kauaeranga Valley. Lodestar Press, Auckland.

Pearson, Dave. 1997 Cristmas Creek Dam, Kauaeranga Valley: Conservation Plan for the Dept of Conservation, Waikato Conservancy, Hamilton.

Trevor Butler 2002 Christmas Creek & Dancing Creek Dam Maintenance Plans for Dept of Conservation, Waikato Conservancy, Hamilton WAICO- 20543

Pearson, Dave. 1994 Dancing Camp Dam, Kauaeranga Valley: Conservation Report for the Dept of Conservation, Waikato Conservancy, Hamilton.

Ritchie, Neville A. 1995 An Account of Remedial Reconstruction & Timber Treatment on the Dancing camp Kauri Driving Dam in the Headwaters of the Kauaeranga Valley, Coromandel Peninsula. Dept of Conservation, Waikato Conservancy, Hamilton
